28.6mm dia x 8.7mm thick Alnico Shallow Pot Magnet c/w 4.8mm dia countersunk hole - 5kg Pull
29mm dia x 9mm thick Alnico Shallow Pot Magnet c/w 5.2mm dia countersunk hole - 5kg Pull
Code: ALSP2909M5-1

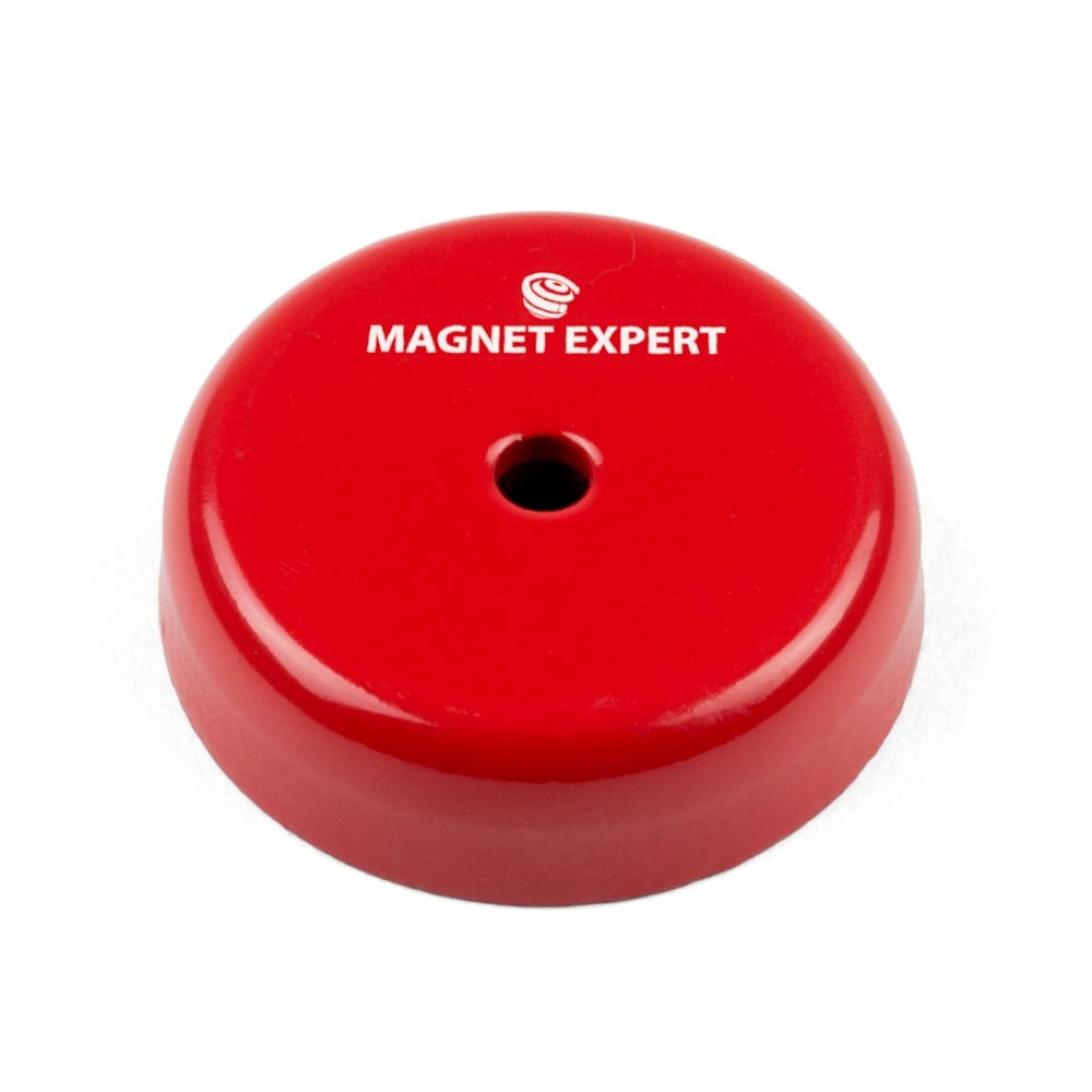

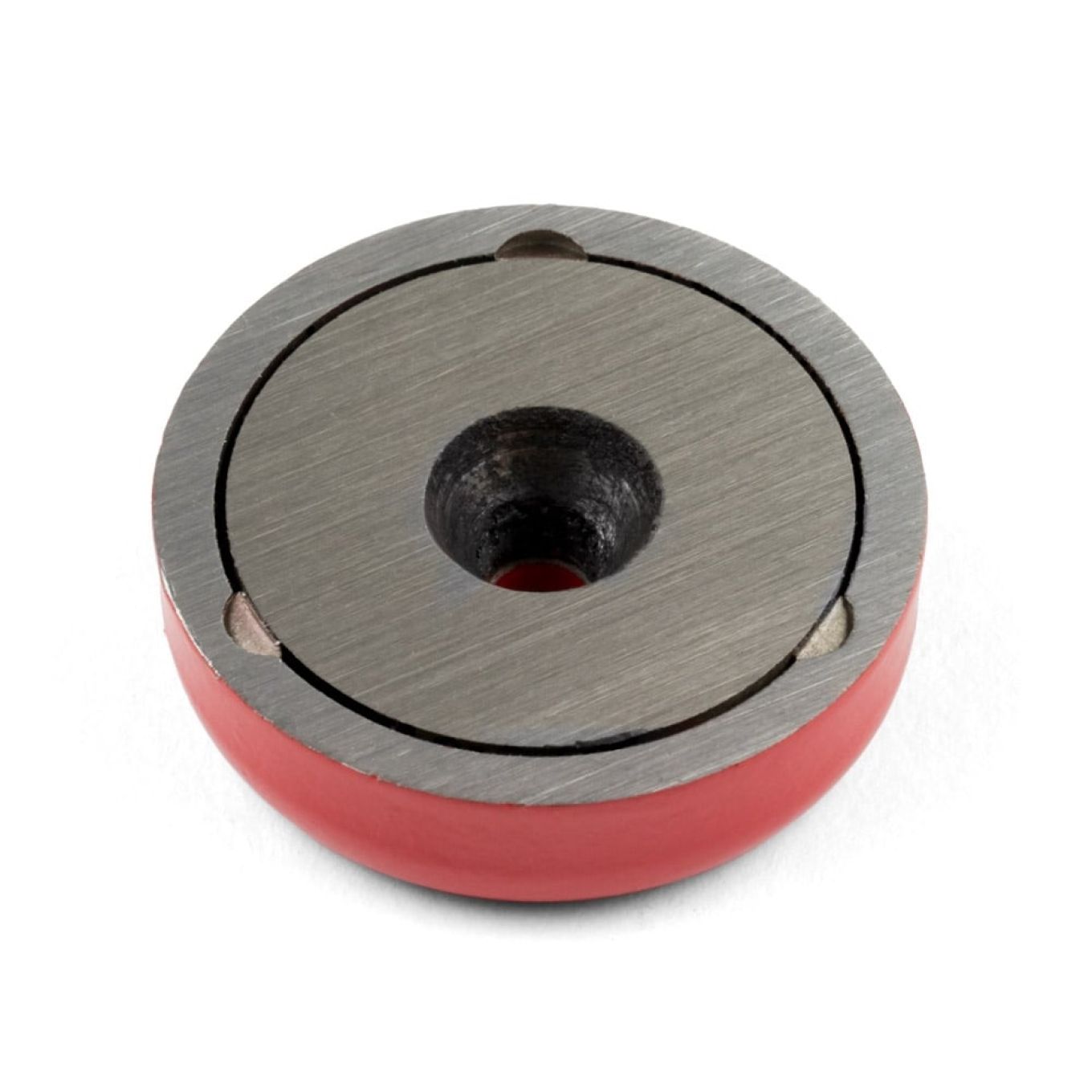

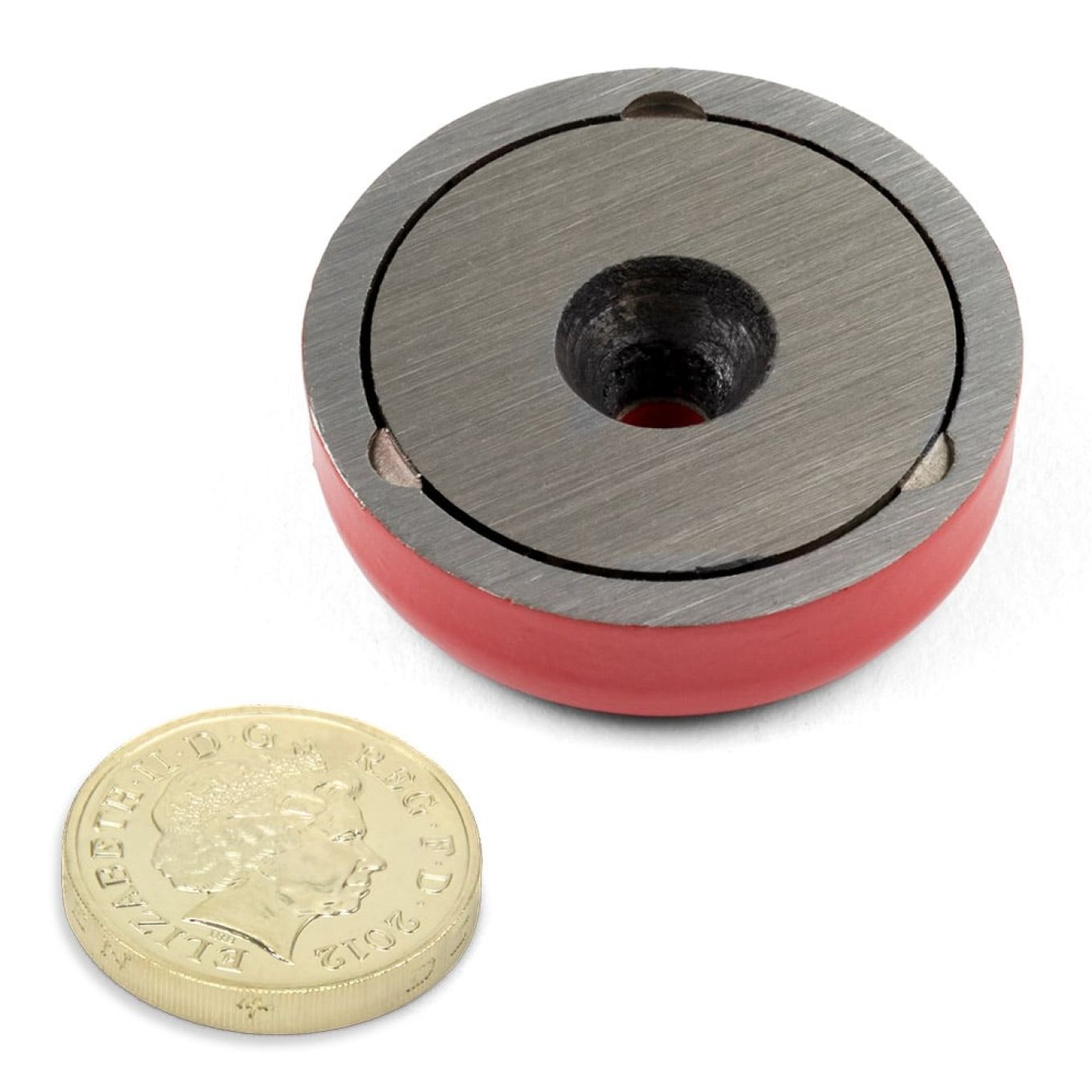

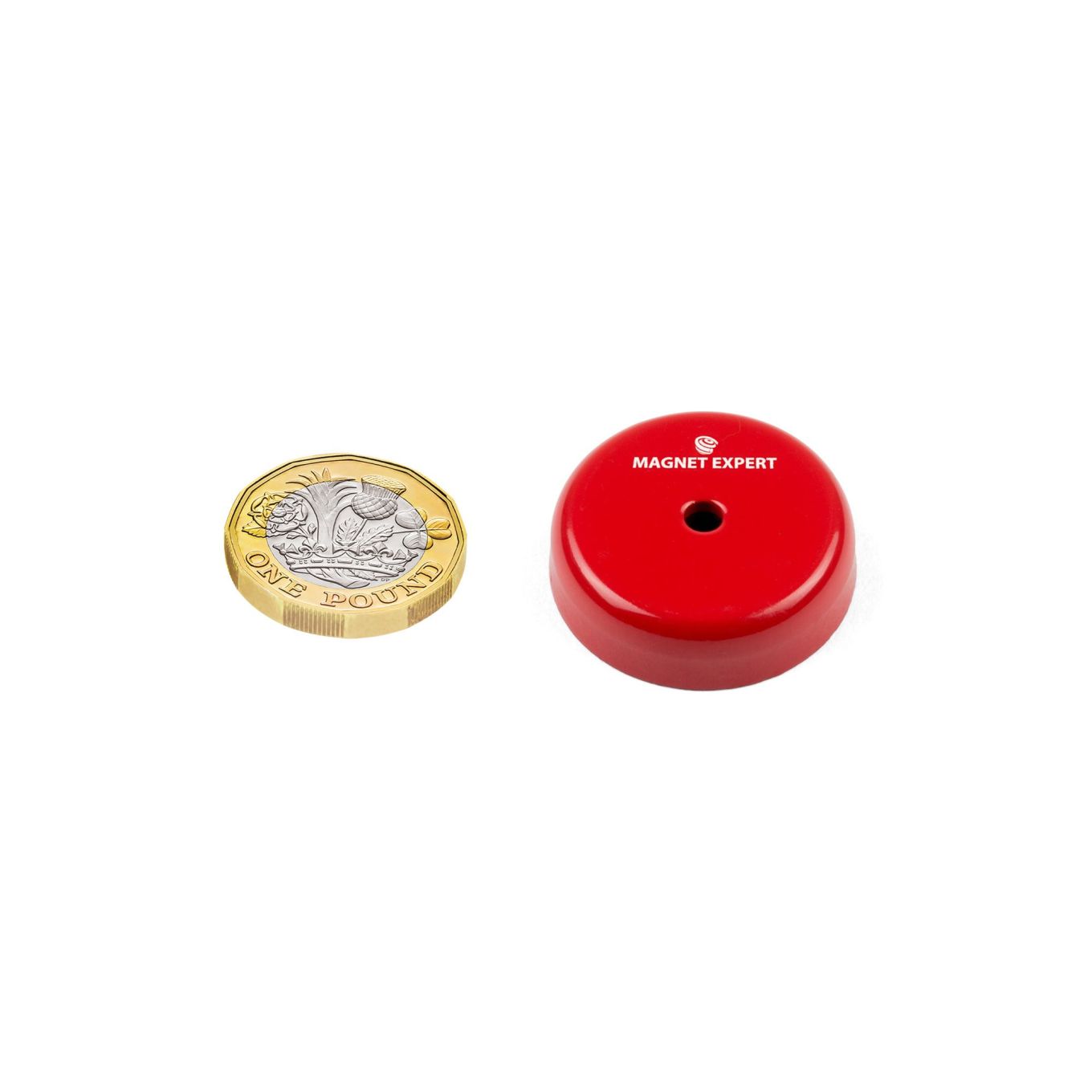

28.6mm dia x 8.7mm thick Alnico Shallow Pot Magnet c/w 4.8mm dia countersunk hole - 5kg Pull

Resistant to corrosion with a 450 degree Celsius operating temperature makes this magnet ideal for high-temperature applications.

Select Pack Size
£8.82 (Inc. VAT)£7.35 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

  • 28.6mm diameter x 8.7mm thick
  • 4.8mm diameter countersunk hole
  • Tolerance: +/-0.8mm OD, +/-0.5mm thickness, +/-0.5mm hole
  • 5kg pull
  • 450 degree Celsius operating temperature
  • Protective epoxy coating

Designed for clamping applications with limited fixing space, particularly in the engineering and manufacturing industries. The steel outer shell acts as a protective unit over magnet while increasing the strength on the magnetic face.
