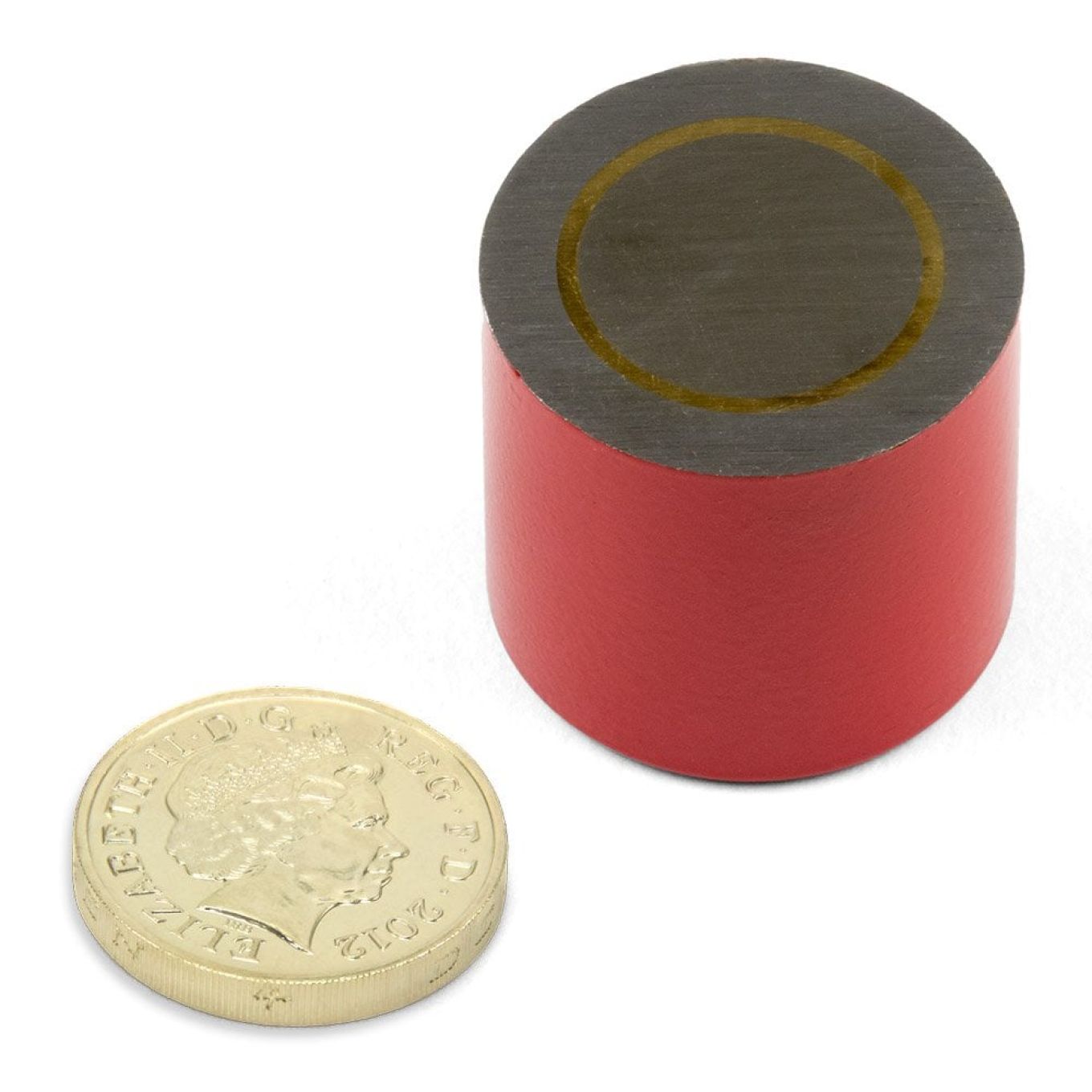

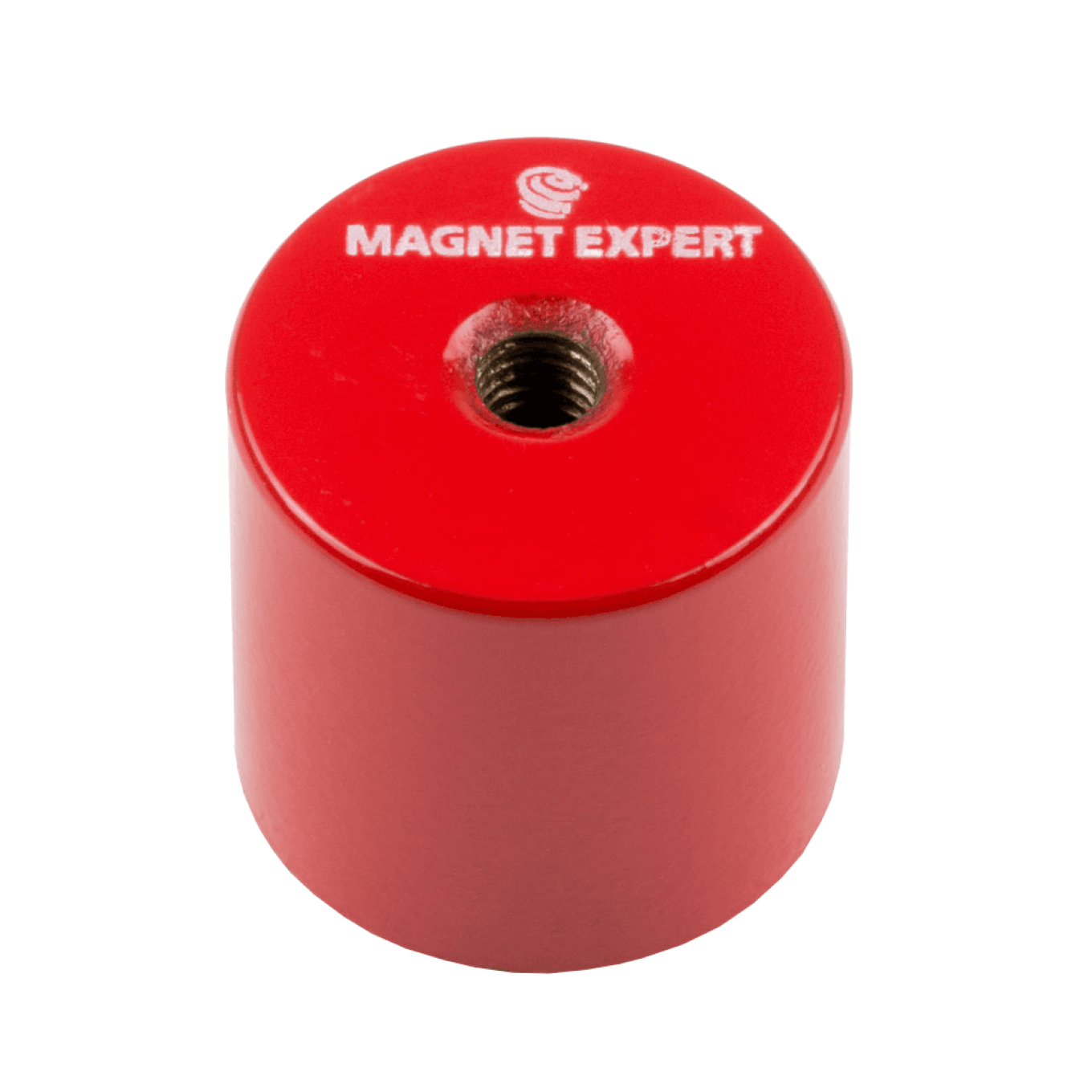

27mm dia x 25mm thick Alnico 5 Deep Pot Magnet c/w M6 threaded hole - 6kg Pull
Resistant to corrosion with a 220 degree Celsius operating temperature makes this magnet ideal for high-temperature applications.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 27mm diameter x 25mm thick
- M6 threaded hole
- Tolerance: +/-0.8mm OD, +/-0.5mm thickness, +/-0.5mm hole
- 6kg pull
- 220 degree Celsius operating temperature
- Protective epoxy coating
This magnet is popular in clamping applications as they can be easily fixed onto an assembly, ideal for engineering and manufacturing industries. The steel outer shell acts as a protective unit over magnet while increasing the strength on the magnetic face.
- 27mm diameter x 25mm thick
- M6 threaded hole
- Tolerance: +/-0.8mm OD, +/-0.5mm thickness, +/-0.5mm hole
- 6kg pull
- 220 degree Celsius operating temperature
- Protective epoxy coating
This magnet is popular in clamping applications as they can be easily fixed onto an assembly, ideal for engineering and manufacturing industries. The steel outer shell acts as a protective unit over magnet while increasing the strength on the magnetic face.
